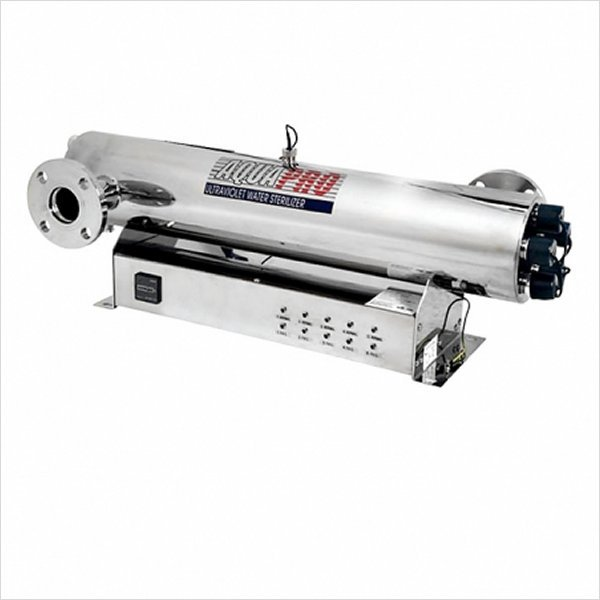

AquaPro UV-72GPM-HT destroys harmful microorganisms contained in the water and makes the water safe for use. Made of high quality stainless steel for use in the food industry
A modern bactericidal UV lamp with a long service life and a high efficiency is placed in the casing of the installation.
The design of the installation is distinguished by modern design, compactness, economy, convenience and versatility of installation, compatibility with other water purification devices, ease of operation and maintenance.
UV72GPM STANDARD SPECIFICATION | . |
---|---|
Dimensionl LxWxD (mm) | 980X280X280 |
Electrical Volts | 110/220V / 50/60HZ |
Flow Rate | 72GPM |
In/out Port | 2" or Flange |
UV Lamp (PC) | 6 |
Quartz Sleeve (PC) | 6 |
Lamp Failure Device | Yes |
Lamp Failure Device | Yes |
Ambient Temperature | 2-40oC(36-104oF |
Lamp Watts | 40Wx6 |
Chamber | SS316 |
Accumulated Timer | Yes |
UV Light monitor | Yes |
